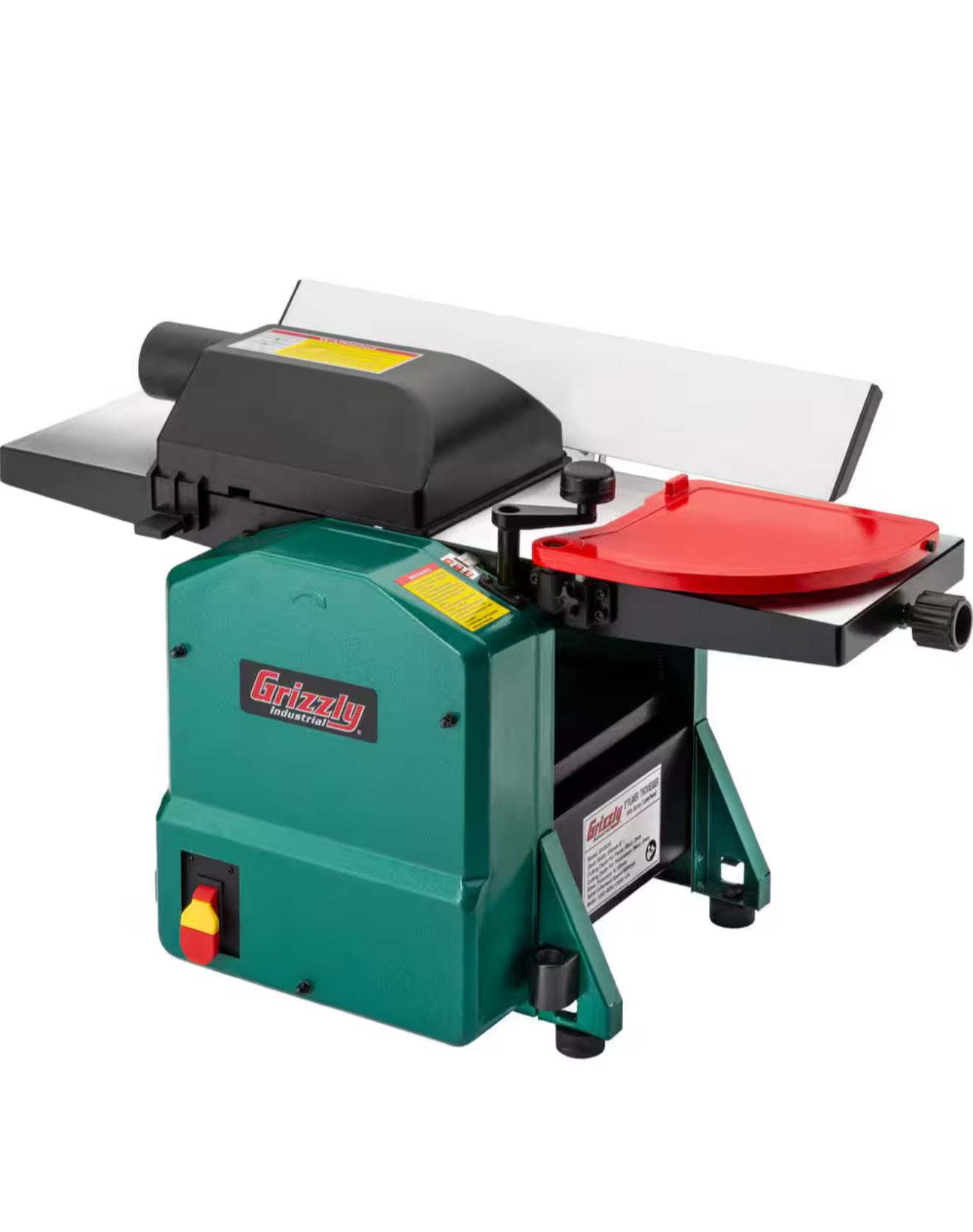

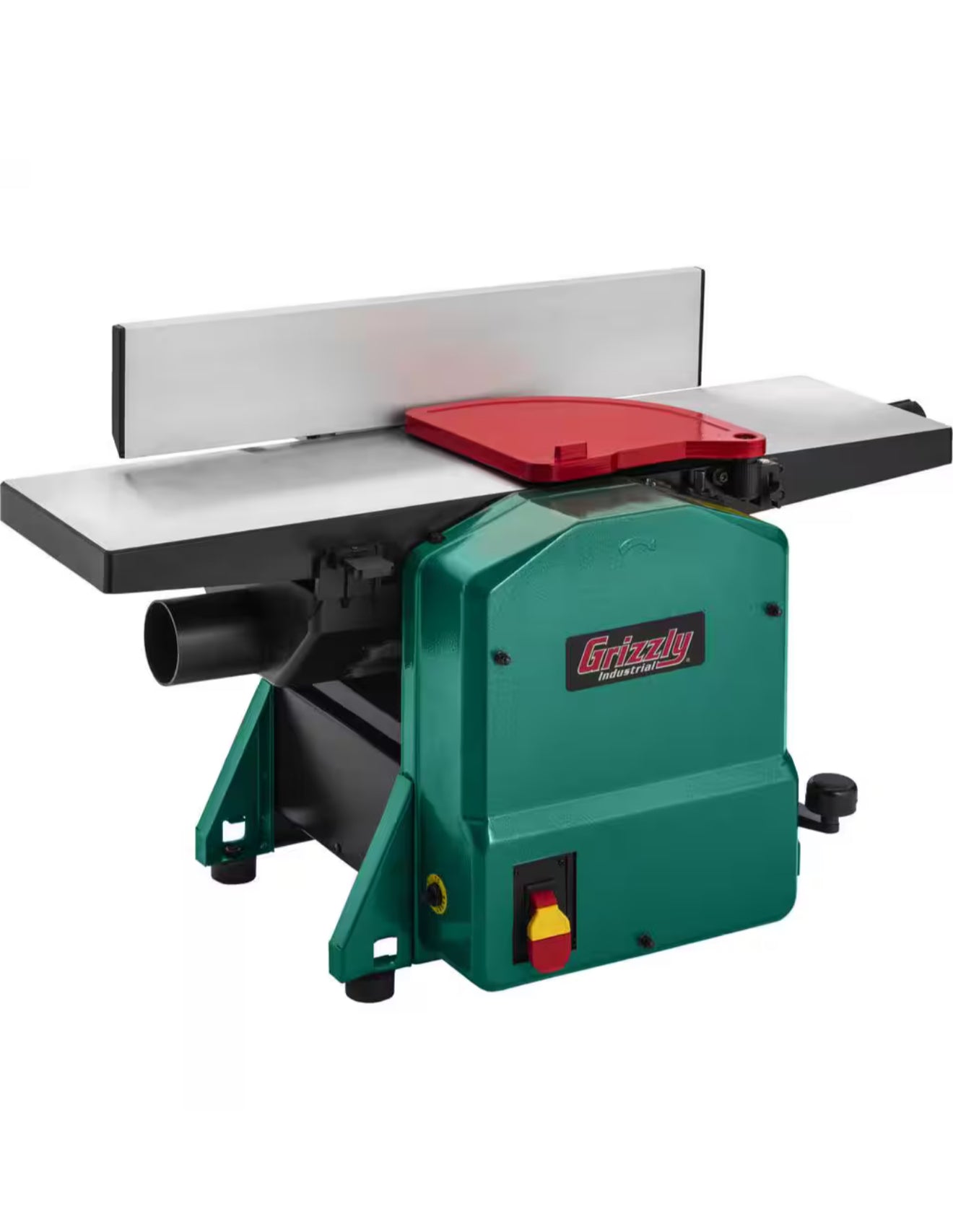

8 in. Combo Planer/Jointer with Helical Cutterhead

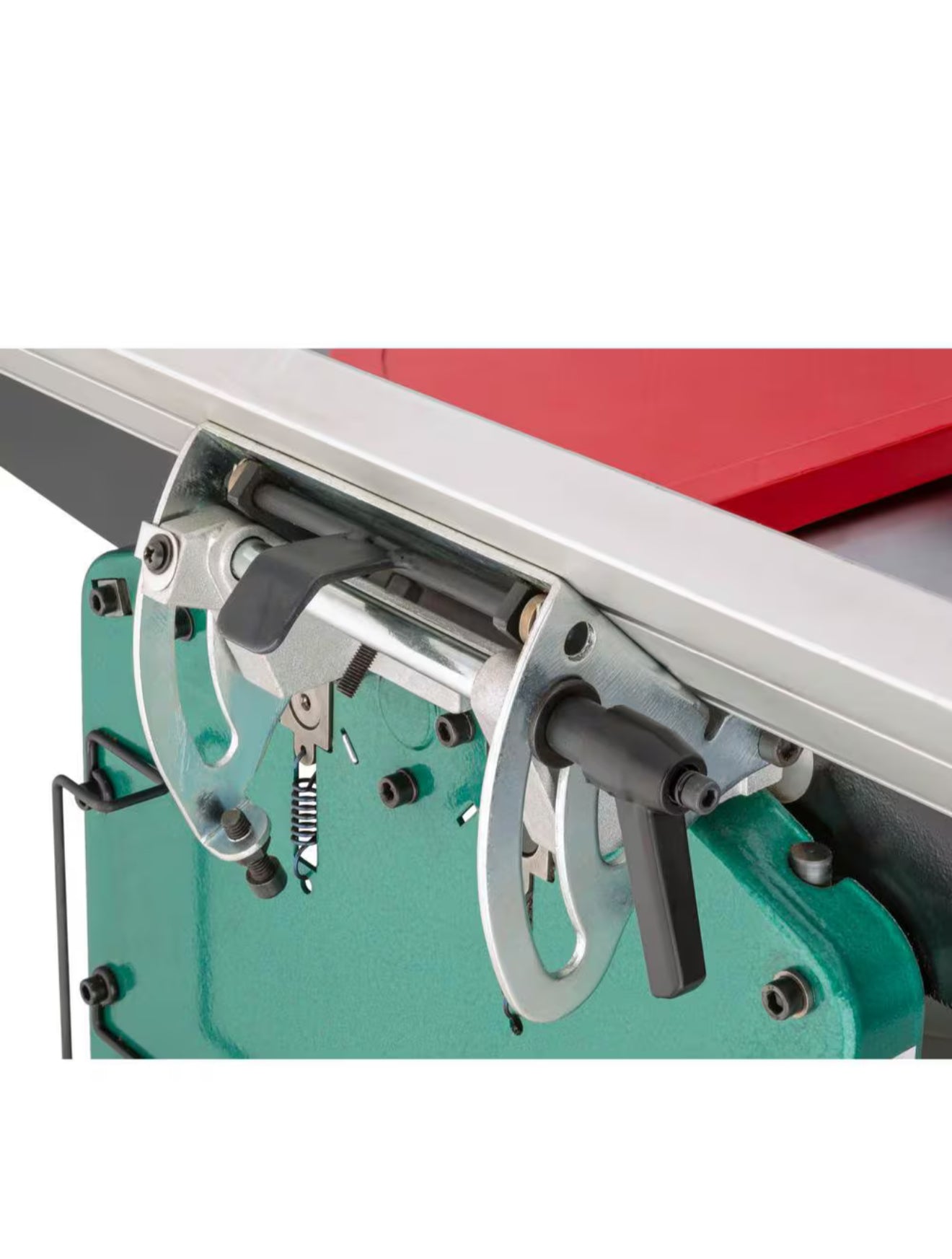

Elevate your woodworking projects with this versatile 8-in., two-in-one planer jointer. Its compact benchtop design is perfect for any workshop, allowing you to reclaim old lumber and transform rough boards into smooth, workable material. The powerful 1-1/2 HP motor drives a helical cutterhead with 18 diagonally arranged inserts, delivering exceptionally smooth, quiet cuts with minimal tearout. For added convenience and longevity, each insert can be rotated up to three times to expose a fresh, sharp edge. This machine is built for precision and ease, featuring sturdy die cast aluminum tables that lock securely for accurate, repeatable cuts, a quick-release fence with stops at 0 and 45 degrees and a relocatable dust shroud with a 2-in. port for simple connection to your dust collection system.

• Motor: 1-1/2 HP, 120V, single-phase, 15-amp
• Maximum cut width: 8 in.
• Maximum cut depth: 3/64 in.
• Minimum workpiece length: 6 in.
• Minimum thickness: 1/4 in.

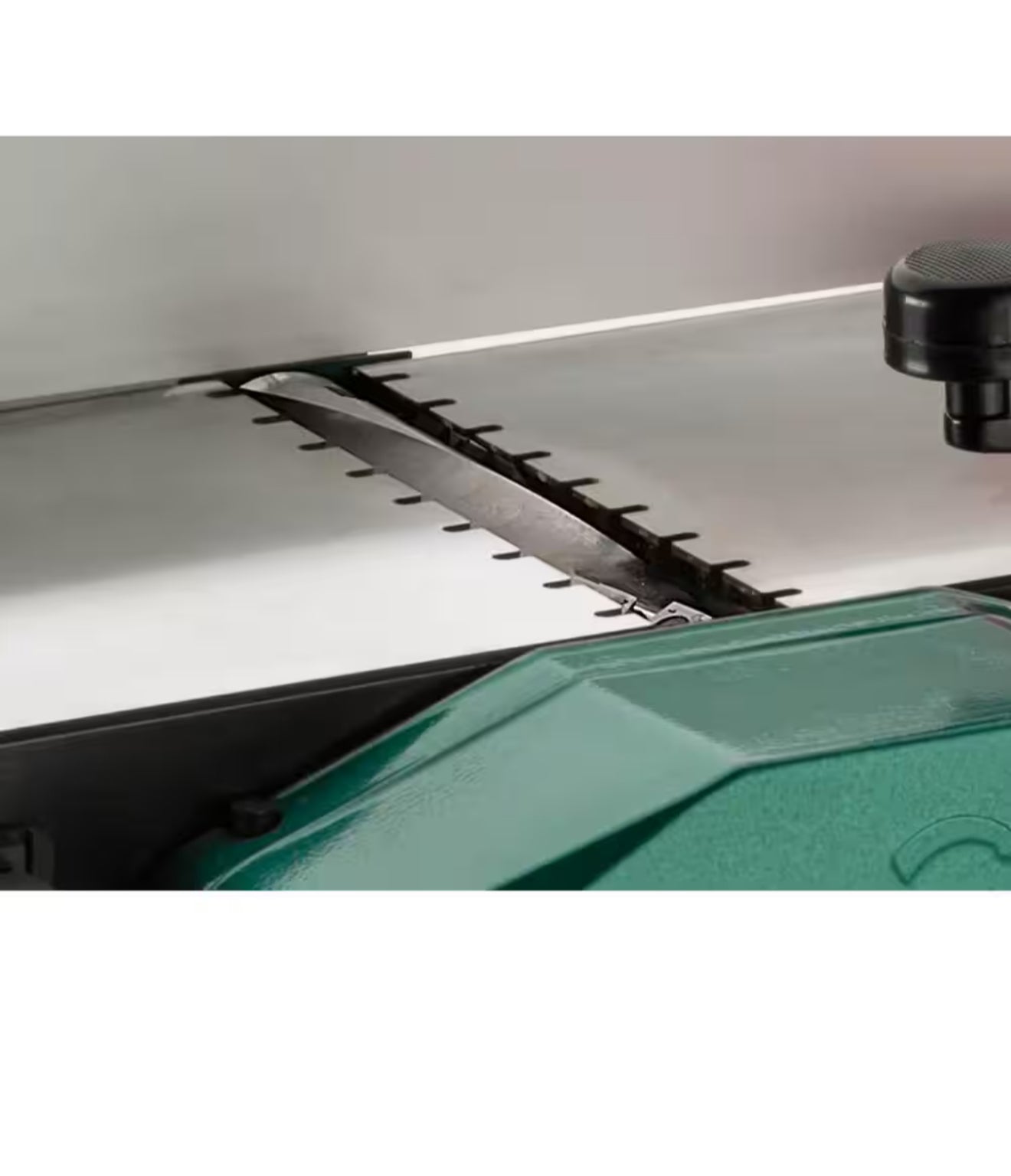

• Cutterhead type: 2-in. helical with 18 inserts
• Insert size and type: 15 mm x 15 mm x 2.5 mm indexable carbide inserts
• Cutterhead speed: 8,500 RPM
• Cuts per minute: 17,000
• Planing feed rate: 22 FPM
• Bevel jointing: 0 to 45 degrees
• Fence size: 21 in. L x 4 in. H
• Planer table size: 13-3/4 in. L x 8 in. W
• Jointer table size: 29-1/4 in. L x 8-1/4 in. W
• Footprint: 15-1/2 in. x 10-1/2 in.
• Overall dimensions: 31 in. W x 17-1/2 in. D x 18-1/2 in. H
• Approximate shipping weight: 57 lbs.
